Table of Contents
This page provides an overview of various tools and resources for checking and selecting open source software licences and their compatibility.
Overall information and licence lists
Permissive and copyleft licences
(Based on materials from ORCRO)

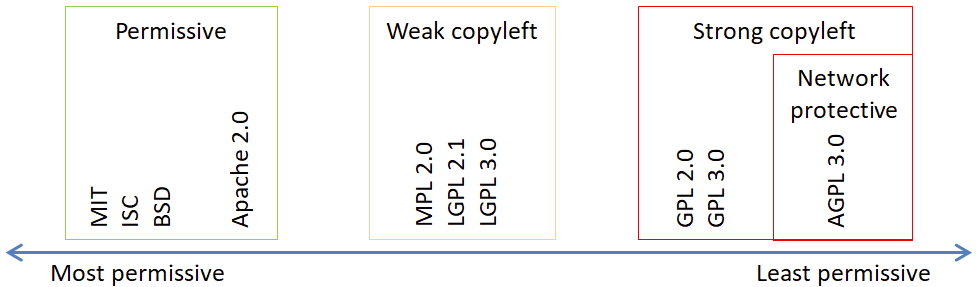

Permissive licences have simple requirements – to credit original work, describe changes, provide a disclaimer, etc. Copyleft licences (“reciprocal”, “protective”, “restrictive”, derogatory: “viral”) require the rights to be preserved in derivative works. If you use any components (libraries) with copyleft, you are obliged to make derived source code available, which may include the entire product/project!
- Permissive – do anything
- MIT – short and simple
- ISC (OpenBSD) – further shortened equivalent
- BSD – some versions require including the disclaimer
- Apache 2.0 – requires notice of changes, grants a license to patents unless litigating and mentions the preservation of trademark rights
- Weak copyleft – file (library) scope
- MPL 2.0 – simple, allows static linking and licence variants with additional terms
- LGPL 2.1 – cleaned text of LGPL 2.0, allows dynamic linking without enforcing copyleft
- LGPL 3.0 – grants the use of patents; the end-user must be able to install a modified version – it prohibits closed devices, DRM or hardware encryption or patents retaliation; compatible with Apache 2.0
- Strong copyleft – project scope
- GPL 2.0 – often used
- GPL 3.0 – grants the use of patents, the end-user must be able to install modified software, compatible with Apache 2.0
- AGPL 3.0 (Affero) – network protective: external use of modified(!) code requires its availability – network use is a distribution of the software, modified source code must be available
- Proprietary – these licences restrict user rights and protect the commercial interests of copyright owners
Per-feature or tabular comparisons of licences and categorised lists
Licence compatibility
GPL licences compatibility
Arrows are transitive and go from licences of the components toward the licence of your project
(From https://www.gnu.org/licenses/quick-guide-gplv3.html)

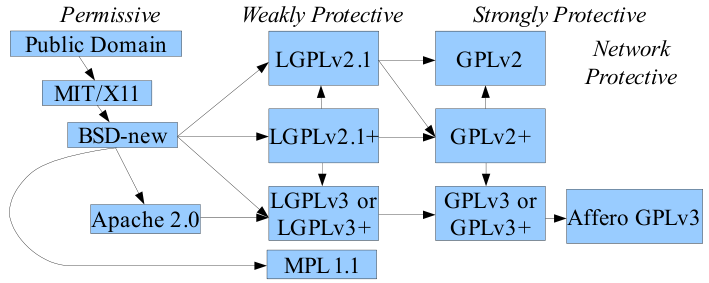

Above, per the dotted line, “GPL 2 only” is not compatible with GPL 3”, but ”GPL 2 or later” is. A more detailed view with precisely stated licences:
(From David A. Wheeler 2007, https://web.archive.org/web/20210101030518/https://dwheeler.com/essays/floss-license-slide.html, SVG variant: https://en.wikipedia.org/wiki/License_compatibility#/media/File:Floss-license-slide-image.svg)
On AGPL compatibility:
- (L)GPL 3.0(+) components can be used in software under AGPL, thanks to an explicit rule in GPL
- Code under AGPL cannot be used in (L)GPL projects unless dual-licensed
Relationship between most used licences in GÉANT

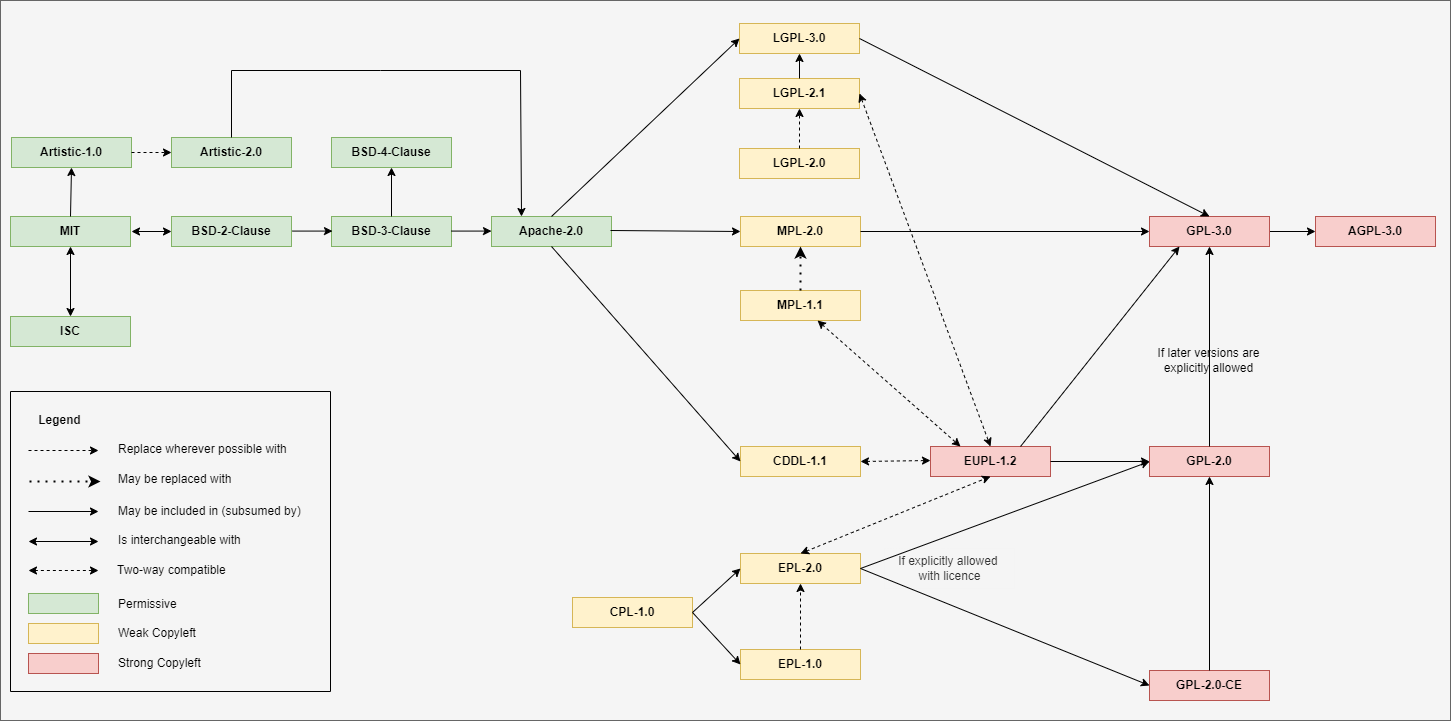

Following is a graph of licences that are most frequently used in GÉANT projects that were scanned using the Mend tool. It is based on the two previous graphs.
Dual and multi-licensing
- Dual and multi-licences can help avoid licence compatibility issues, making the use of components more flexible.
- You can choose a licence compatible with the one used for your software. But you cannot dual-license your software to match some components with one licence and others with another. Licences of all used components must be compatible with all of your licences.
- “Or later”(often expressed as “+”) licence variants imply the applicability of later, possibly still non-existing, versions of these licences. This is sometimes implied unless you explicitly decline it.
- Some licences include automatic relicensing (MPL 2.0, EUPL 1.2, CeCILL), while EUPL comes with a full list of licences it can be combined with.
Licence compatibility matrices or checkers
Joinup Licensing Assistant – Compatibility Checker, https://joinup.ec.europa.eu/collection/eupl/solution/joinup-licensing-assistant/jla-compatibility-checker
Licence Compatibility Checker software

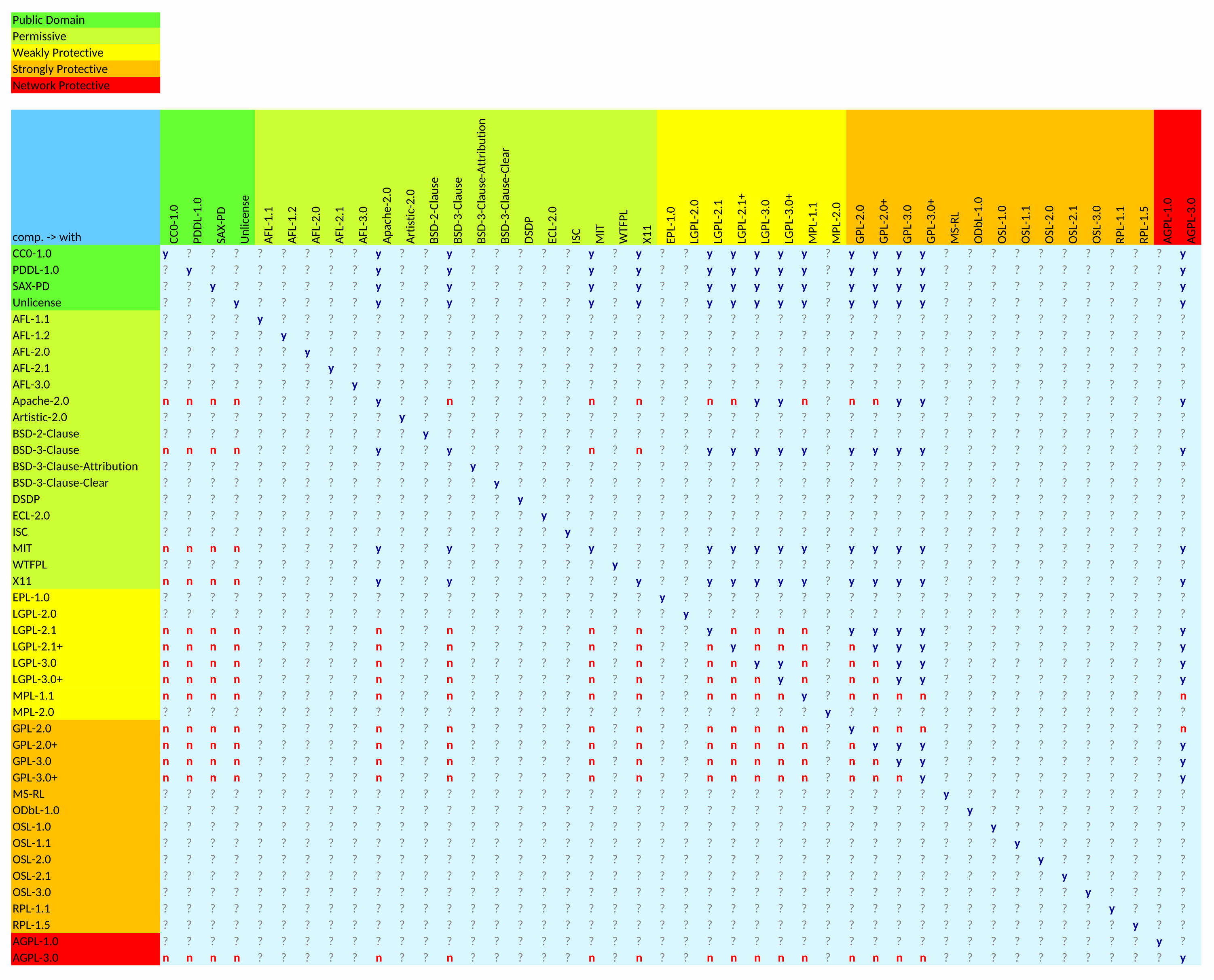

In-licences (licences of components) are in rows and out-licences are in columns:
(Source: https://github.com/HansHammel/license-compatibility-checker)
Open Source Automation Development Lab (OSADL) matrix and rules

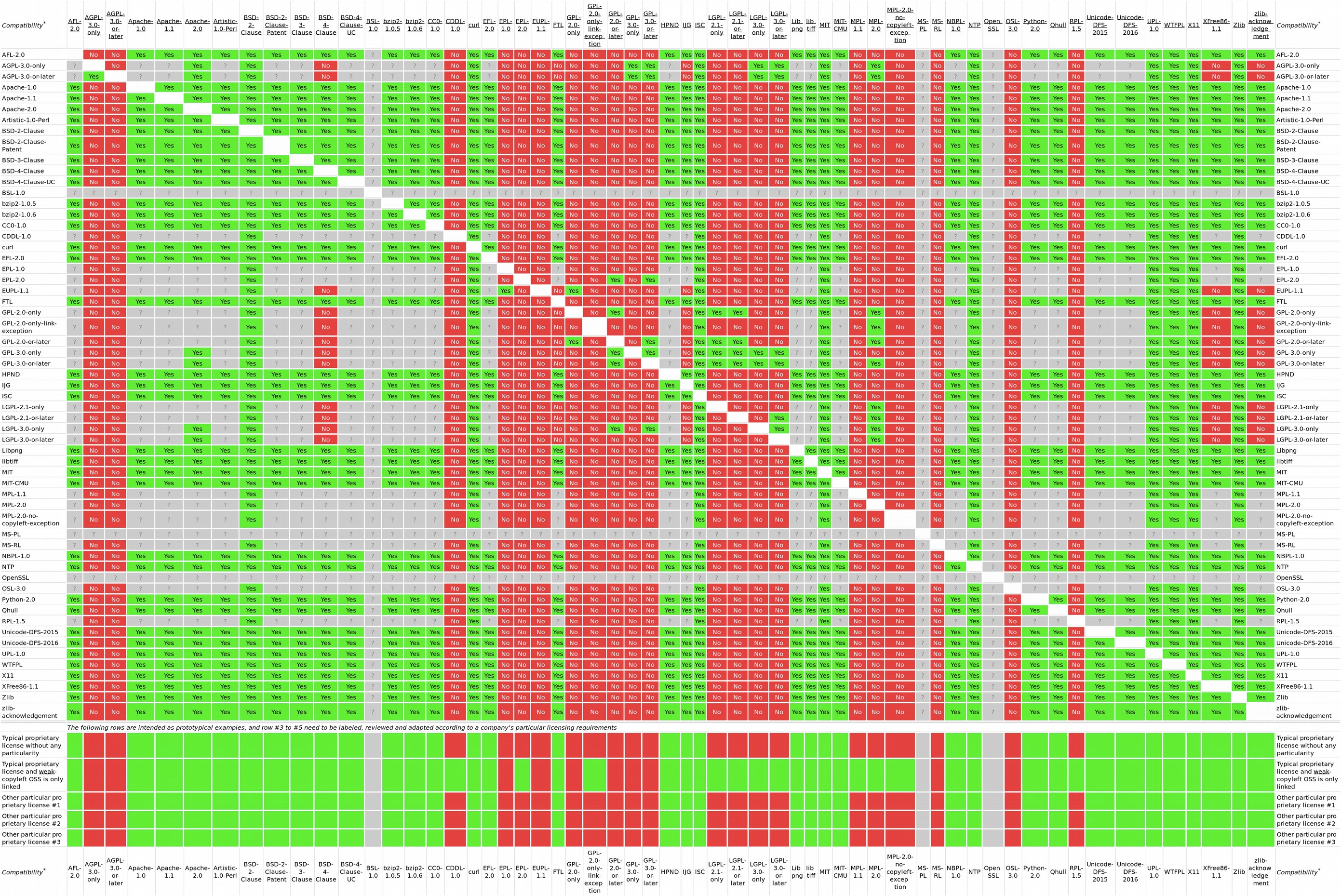

In-licences are in columns and out-licences are in rows:
(Source: Meeker, H., & von Wendorff, C. (2019). Fulfilling open source license obligations: Can checklists help?, https://events19.linuxfoundation.org/wp-content/uploads/2018/07/OSLS-2019-Fulfilling-Open-Source-license-obligations-Can-checklists-help.pdf)
More at
GNU GPL licences compatibility
EUPL 1.2
Creative Commons licences
Risks of licences
Risk mitigation against potentially harmful legal threats or behaviours by free-software licences
Frequently used protective and permissive licenses |
| AGPLv3 | GPLv3 | GPLv2.1 | LGPLv3 | LGPLv2.1 | MPL-2 | BSD |
SaaS/cloud | Yes | No | No | No | No | No | No |
Tivoization | Yes | Yes | No | Yes | No | No | No |
Patent trolling | Yes | Yes | No | Yes | No | No | No |
Proprietization | Yes | Yes | Yes | Partial | Partial | Partial | No |
Granularity/reach | Project | Project | Project | Library | Library | File | N/A |
Trademark grant | Yes | Yes | ? | Yes | ? | No | No |
(Source: https://en.wikipedia.org/wiki/Free-software_license)
Mend resources
Other software composition analysis (SCA, software inventory) tools
Ideally, compliance should be continuously monitored as a part of the build process.
Commercial SCA tools and services:
- The GitLab Ultimate licence compliance feature, available with the GitLab Ultimate licence and integrated into the GitLab user interface, can be integrated into GitLab-managed CI/CD pipelines, https://docs.gitlab.com/ee/user/compliance/license_compliance/
- FOSSA Open Source License Compliance Manager and Open Source Vulnerability Scanner, https://fossa.com/product/open-source-license-compliance
- Black Duck Software Composition Analysis, https://www.synopsys.com/software-integrity/security-testing/software-composition-analysis.html
- JFrog Xray, an add-on for Artifactory, https://jfrog.com/xray/
- Snyk, detecting and fixing code vulnerabilities, dependencies, containers, and infrastructure as code, https://snyk.io/
- Endor Labs, https://www.endorlabs.com/
OSS tools that perform SCA:
- The License Compliance Verifier (LCV), demonstrator based on a subset of the compatibility rules from the Open Source Automation Development Lab (OSADL) matrix, https://github.com/fasten-project/fasten/wiki/License-compliance
- SQAaaS (Software Quality Assurance as a Service), checks for the presence of a LICENSE file with an OSI-approved licence as a part of a more extensive quality analysis (however, only compliance with the OSI Open Source Definition is required), https://sqaaas.eosc-synergy.eu/
- License Maven Plugin
Licence selection tools and resources
- Choose an open-source license, excellent simple guidance on selecting various types of open-source licences, https://choosealicense.com/, permissive licences are those which do not include the Same License condition, https://choosealicense.com/licenses/
- Joinup Licensing Assistant, finds and compares software licenses, https://joinup.ec.europa.eu/collection/eupl/solution/joinup-licensing-assistant/jla-find-and-compare-software-licenses
- The Open Source Guides site provides general resources and guides for getting started with OSS [OSG]. It also includes an excellent overview of the legal aspects of using OSS, https://opensource.guide/legal/
- Creative Commons (CC) licence chooser
- License Clearance Tool (LCT) by NI4OS-Europe suggests appropriate licences for open source and open-source products, artefacts, and research results, based on manual entry of in-licences, https://lct.ni4os.eu/
- Catalogue of standardised SPDX licence codes with licence texts, https://spdx.org/licenses/
- FOSSA set of articles about licence compliance, including an article about the Microsoft Public License (Ms-PL), https://fossa.com/product/open-source-license-compliance, https://fossa.com/blog/open-source-licenses-101-microsoft-public-license-ms-pl/
- tl;drLegal, explanations and classification of OSS licences, https://tldrlegal.com/
Compliance methodology
- In GÉANT, IPR is managed by the IPR Coordinator
- OpenChain
- Open Source Programs Office
